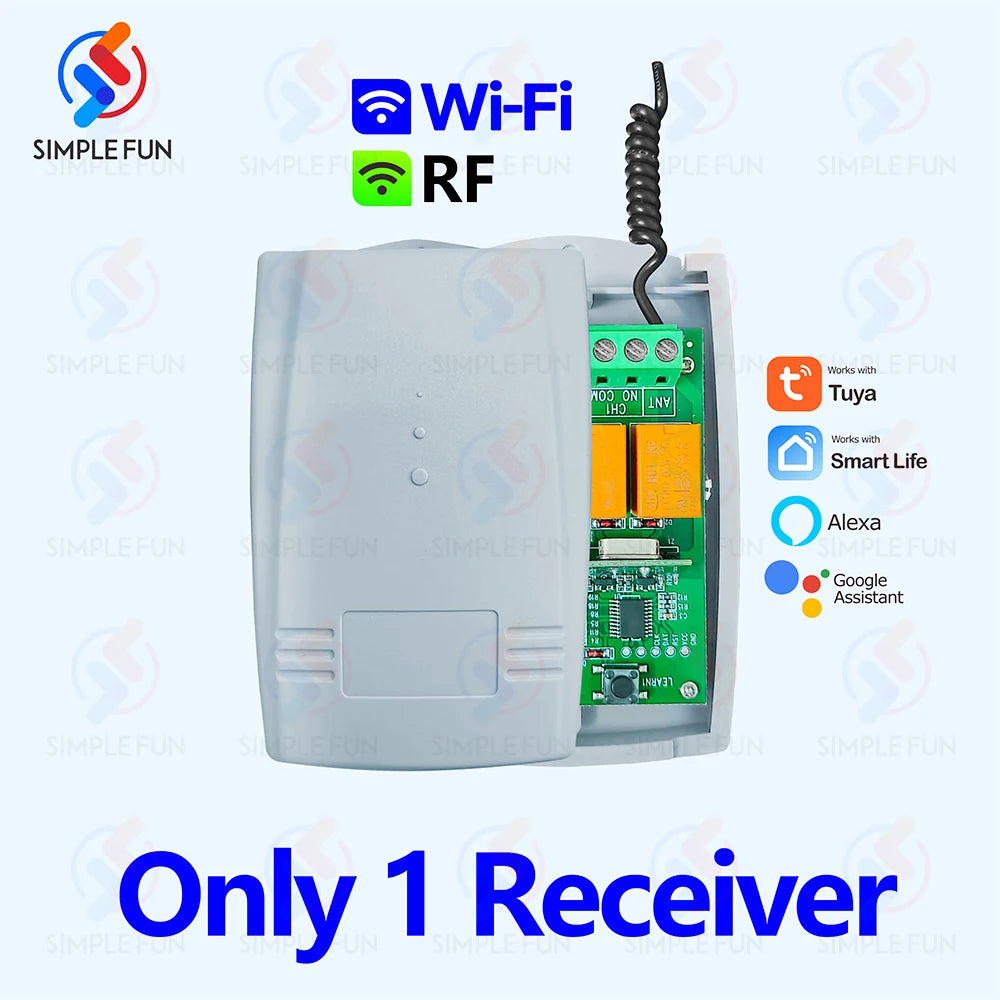

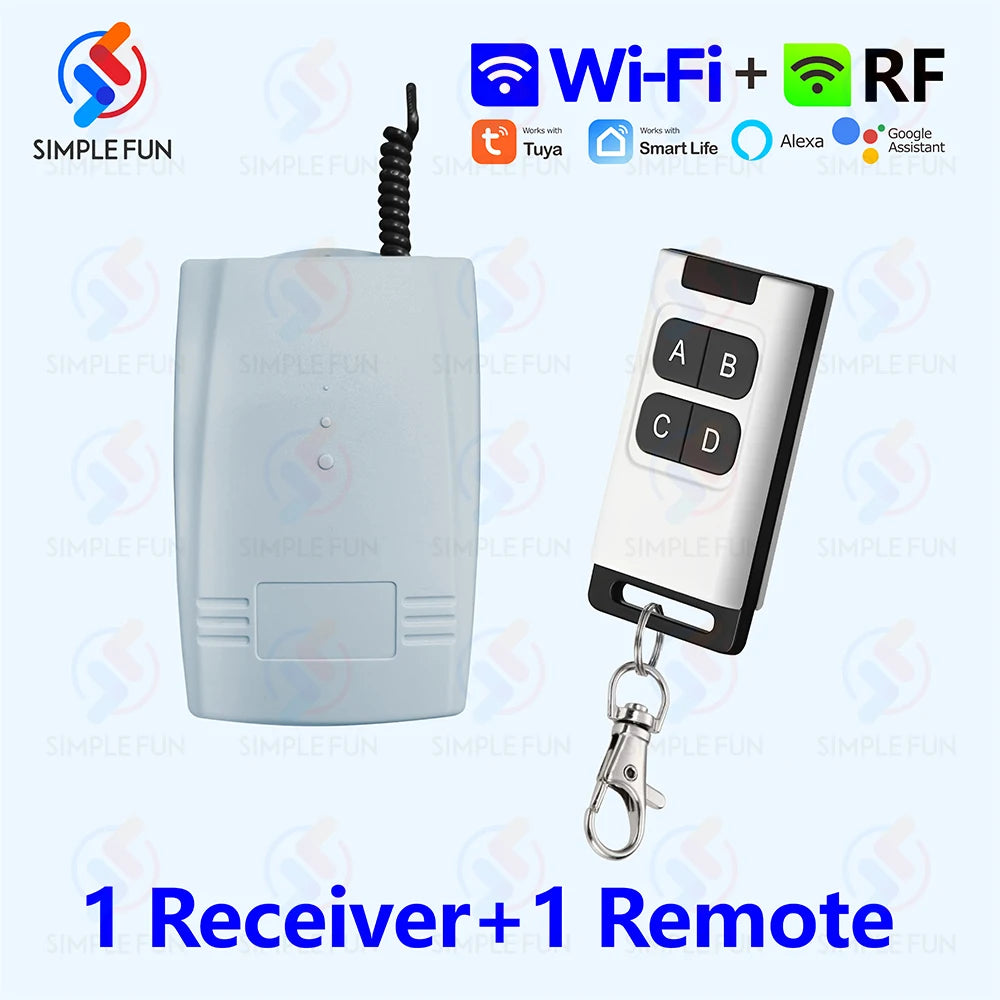

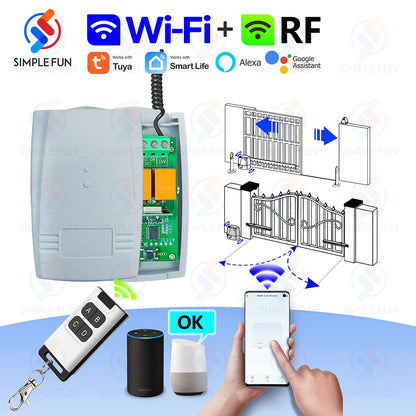

WiFi RF Sliding Door Garage Door Opener Wireless Remote Control Switch
AC DC 12V 24V 2 Channel Receiver Working with Learning Code Fixed Code Rolling Code Remote Control / Tuya,Smart Life/ Alexa ,Google assistant.
Compatible with FAAC BFT DITEC ICE DOORHAN .....

Product Advantages

High compatibility:
Compatible with most major brands of sliding and garage door designs (eg FAAC / DITEC / NICE / BFT / DOORHAN...)

WiFi+RF remote control function:
It can add new remote control methods to your device:

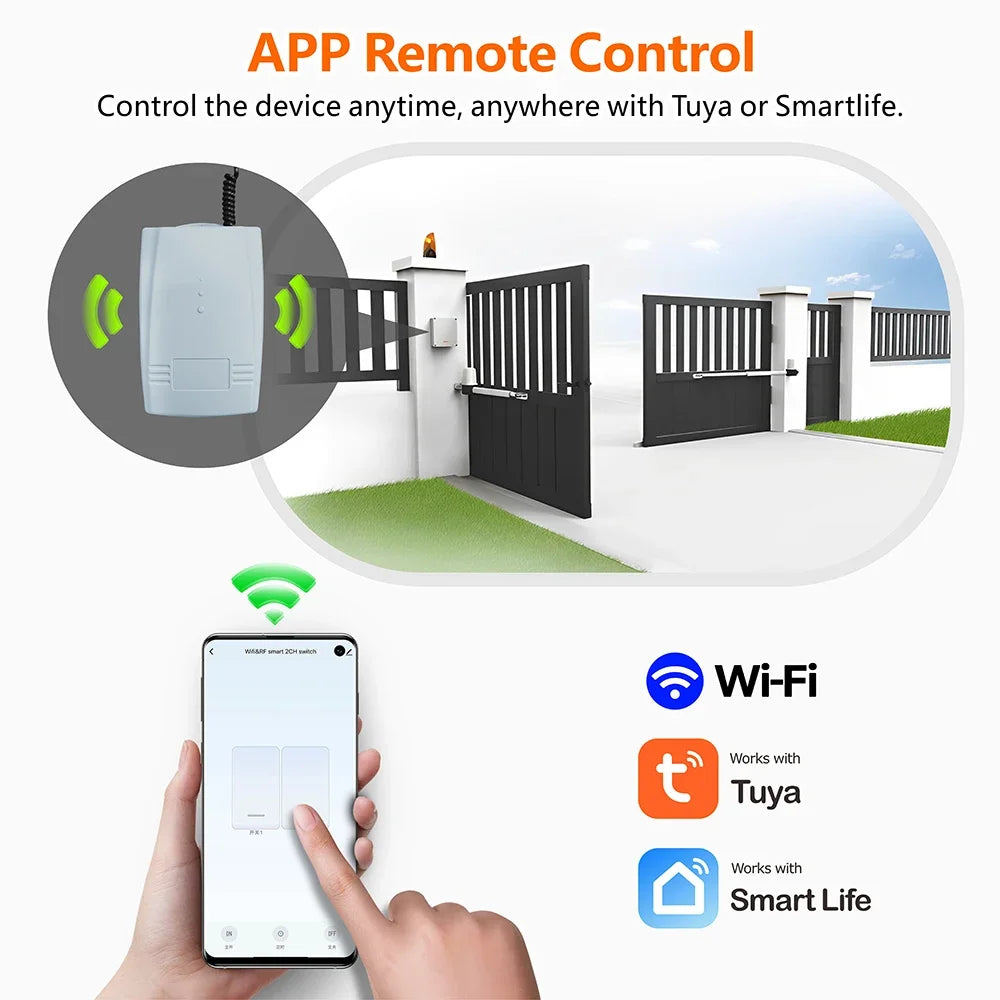

1. APP control (Tuya, Smart Life);
2. Voice control (Google Home, Alexa);
3. RF remote control.
Does not affect the original control equipment. Means to make your garage door smarter;

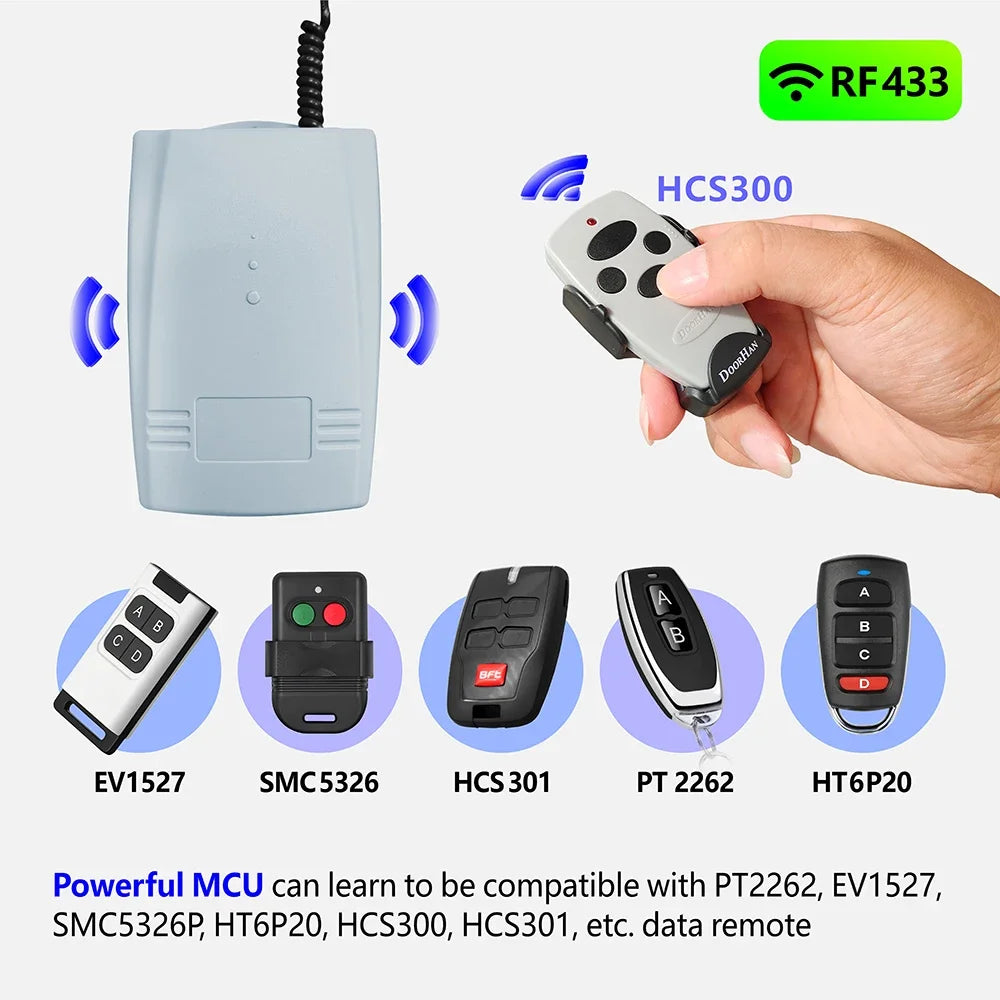

Compatible with a variety of RF remote controls:

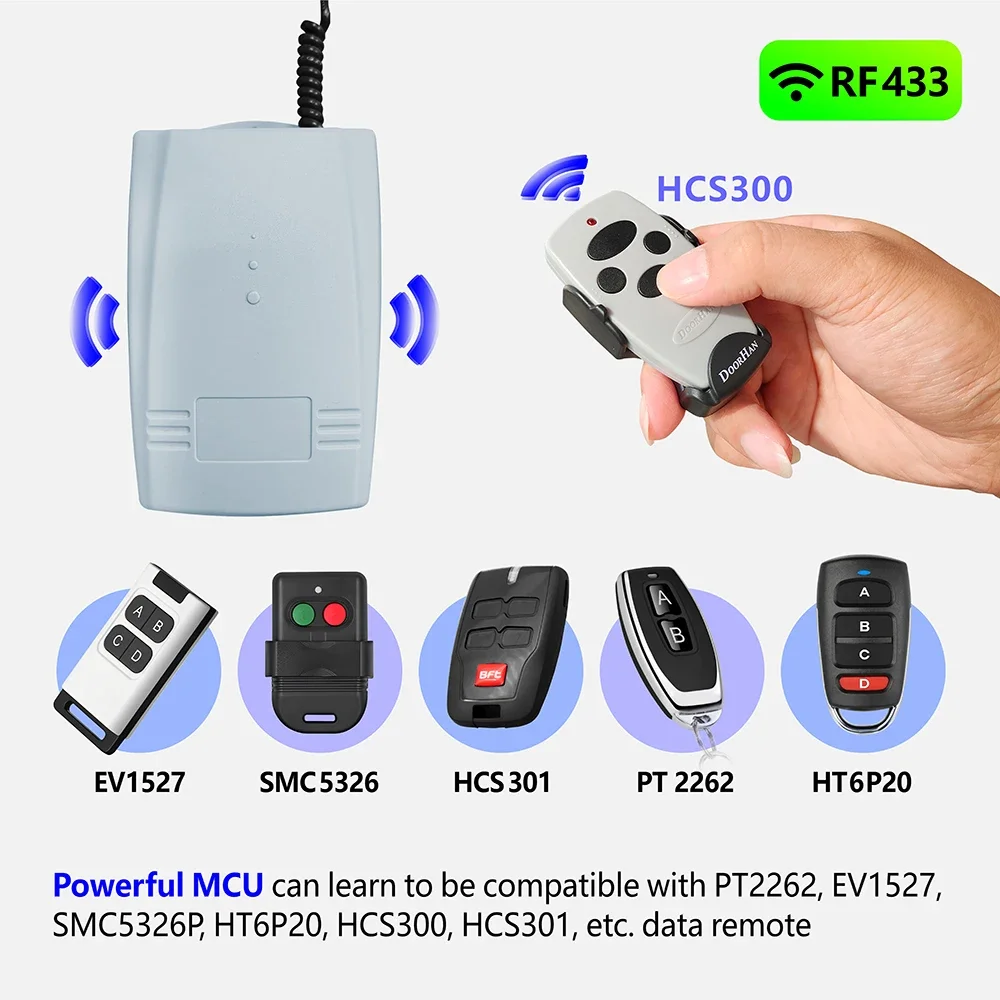

Compatible with rolling code remote control, learning code remote control, fixed code remote control, (but need to meet the following conditions---chip code: PT2262, EV1527, SMC5326, HT6P20, HCS300, HCS301; frequency: 433mhz), this receiver Can store 30+ remote controls.
Note: This device is a rare receiver that is compatible with rolling code remote controls (more secure and less likely to be copied).

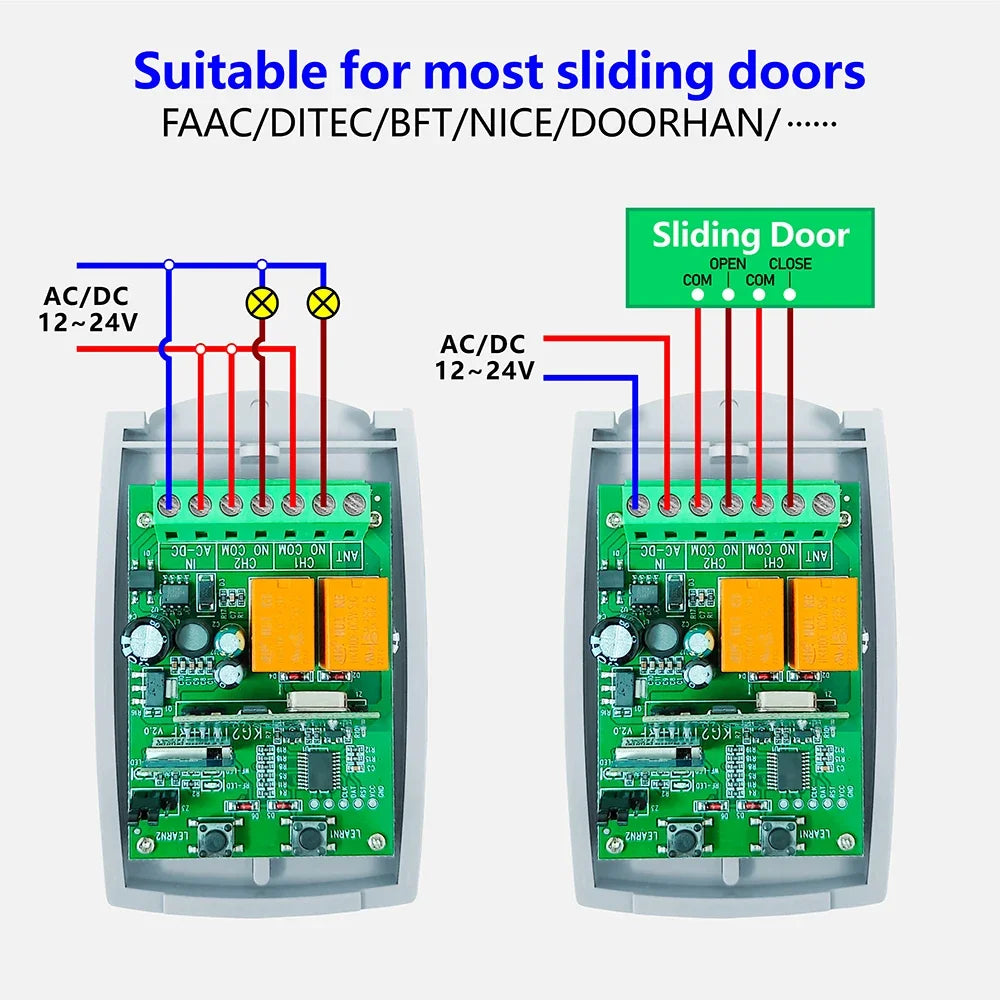

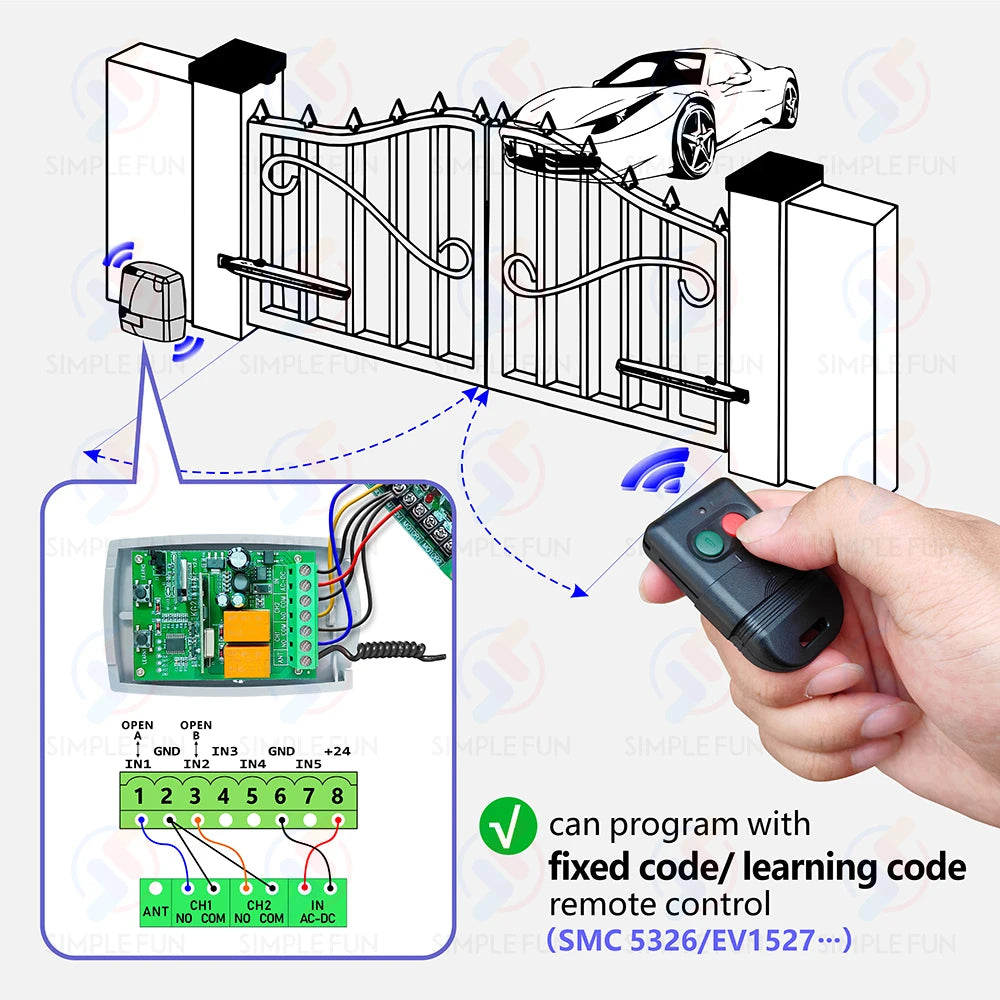

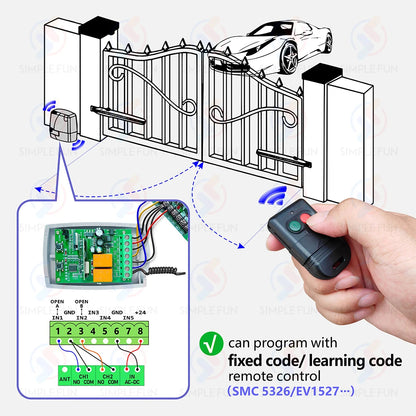

Dry contact receiver:
The receiver is a dry contact receiver with passive output, and the working voltage is AC/DC 12V~24V, that is, AC/DC 12V 24V is acceptable.


Comprehensive after-sales and service

√  Our products has passed CE and RoHS and FCC certification.
√ 24 hour delivery and online after-sales service. We will ship within 24 hours after your payment.
√ 1 year warranty or replacement commitment.
√ Our after-sales service team can provide the most professional solution to any of your problems.

High compatibility:

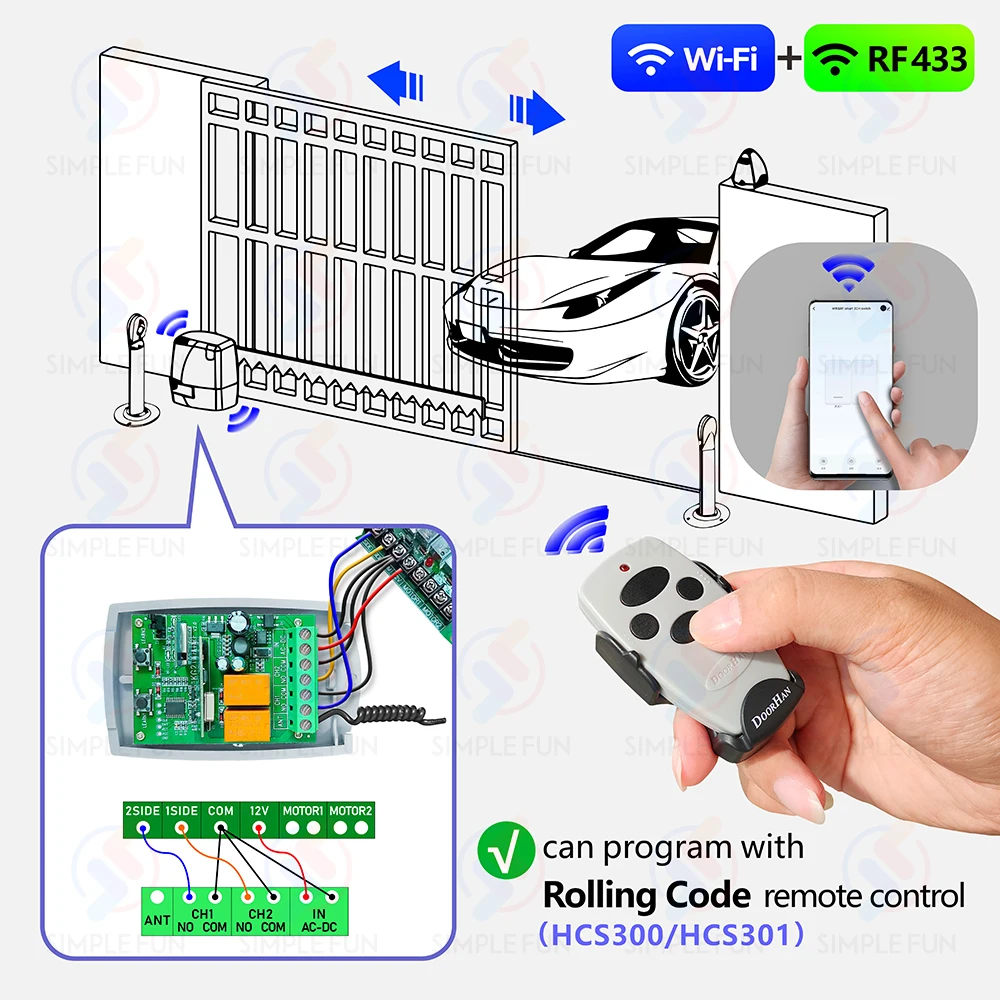

Works with BFT sliding doors, compatible with rolling code remotes.




Works with FAAC sliding doors, compatible with fixed code/learning code remotes.

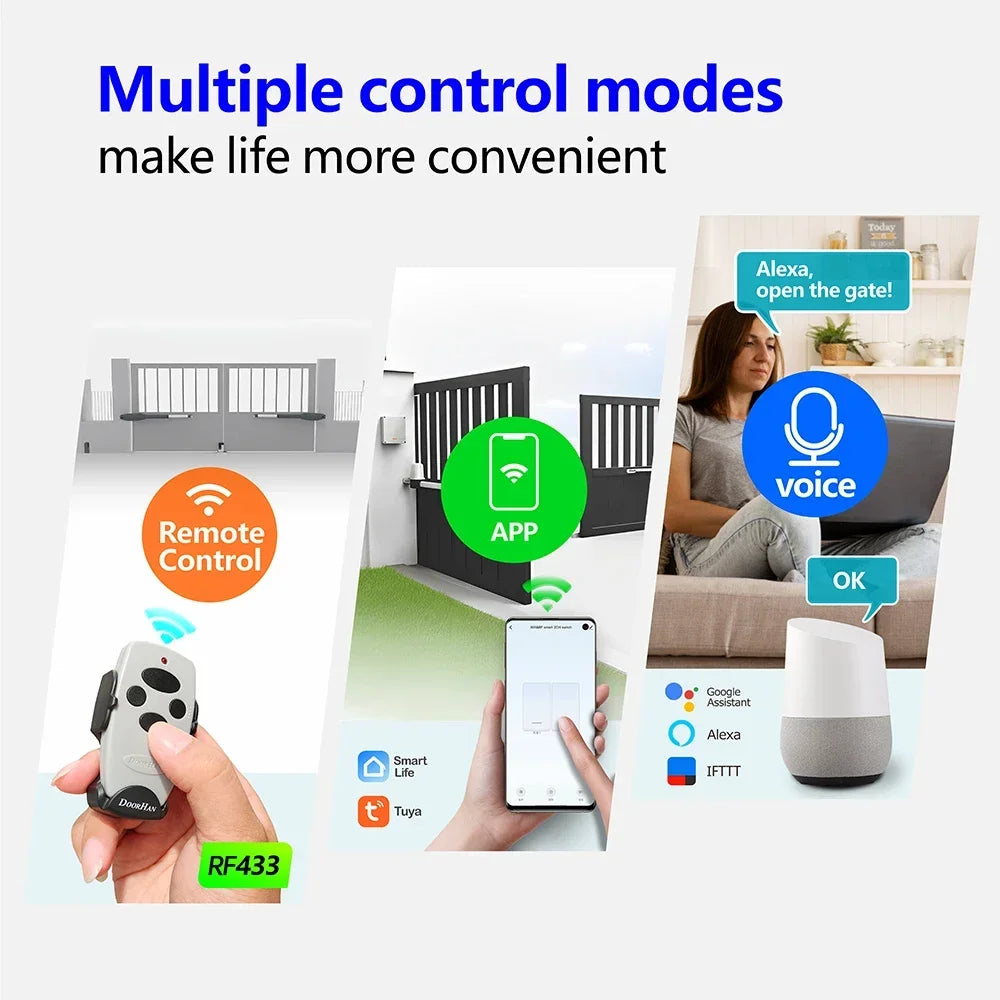

Various control methods:
It can add new remote control methods to your device:
1. APP control (Tuya, Smart Life);
2. Voice control (Google Home, Alexa);
3. RF remote control.



Compatible with a variety of RF remote controls:

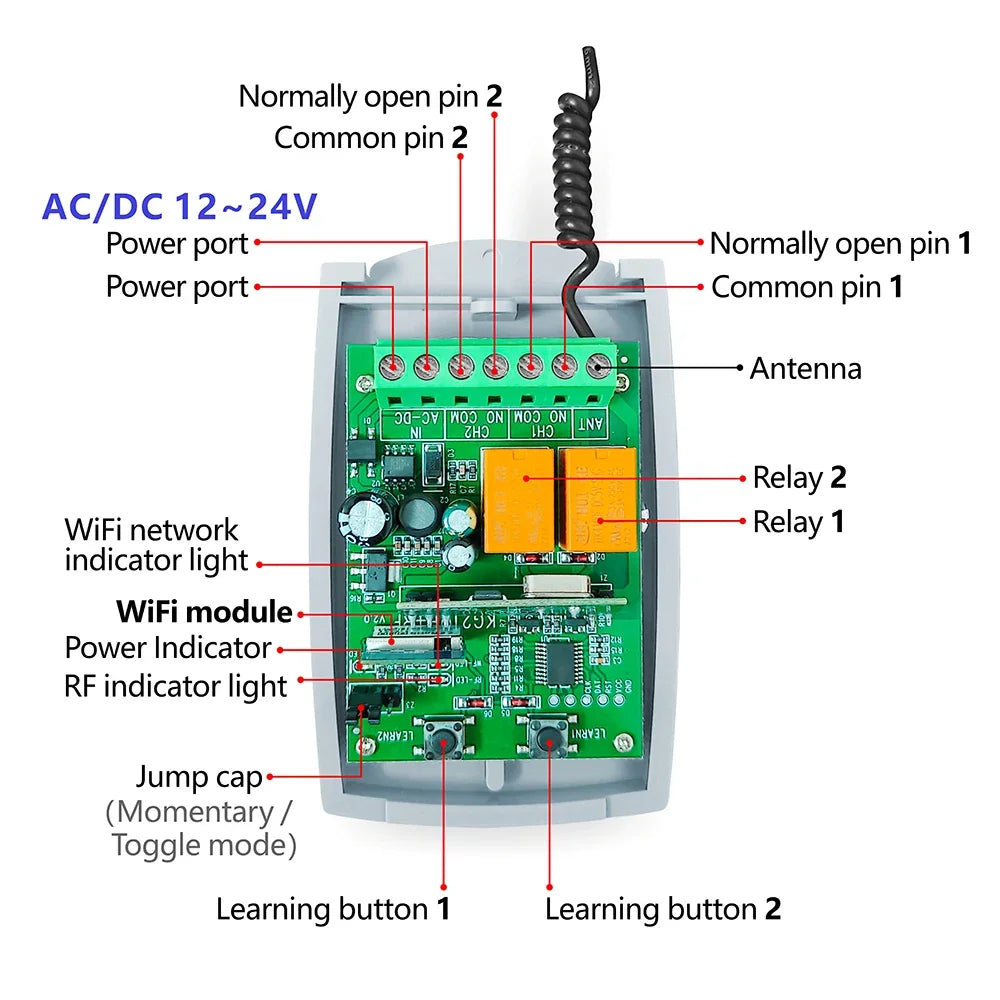

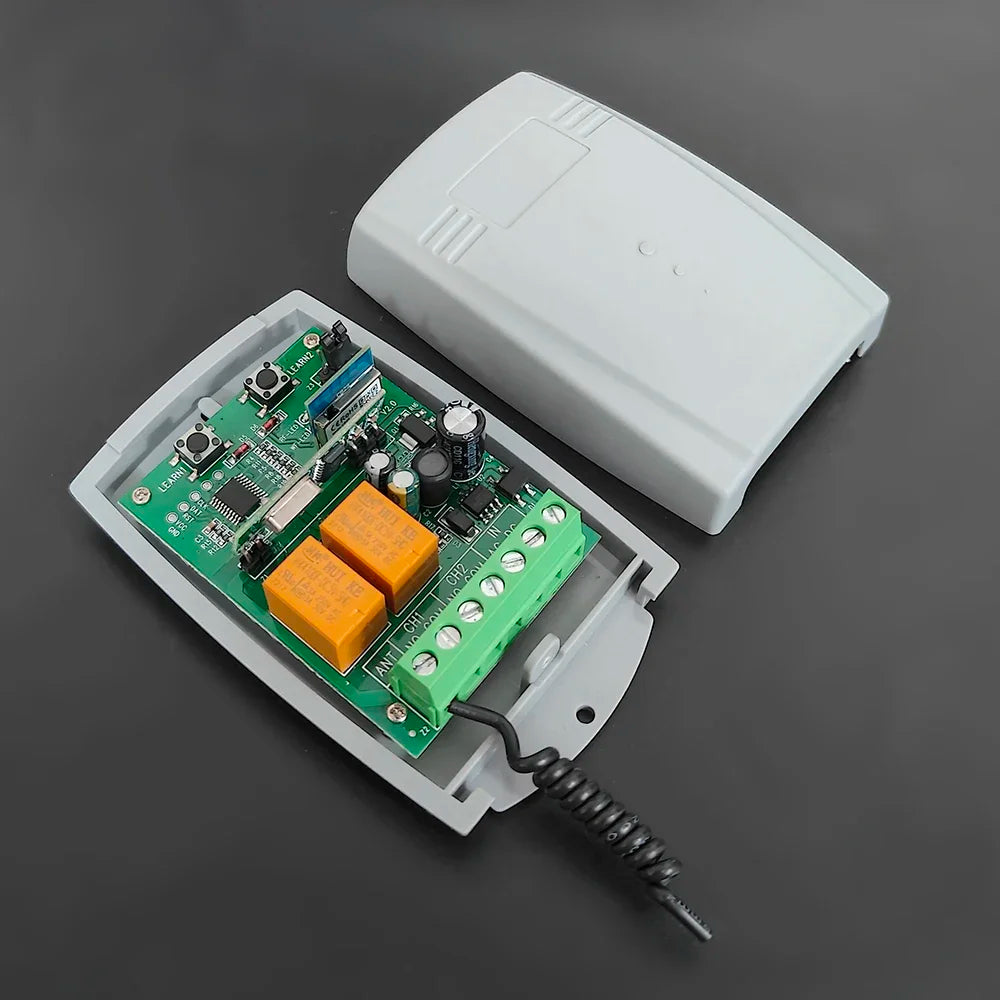

 Receiver Details

1. Working frequency: 433MHz
2. Working voltage: AC/DC 12V ~ 24V

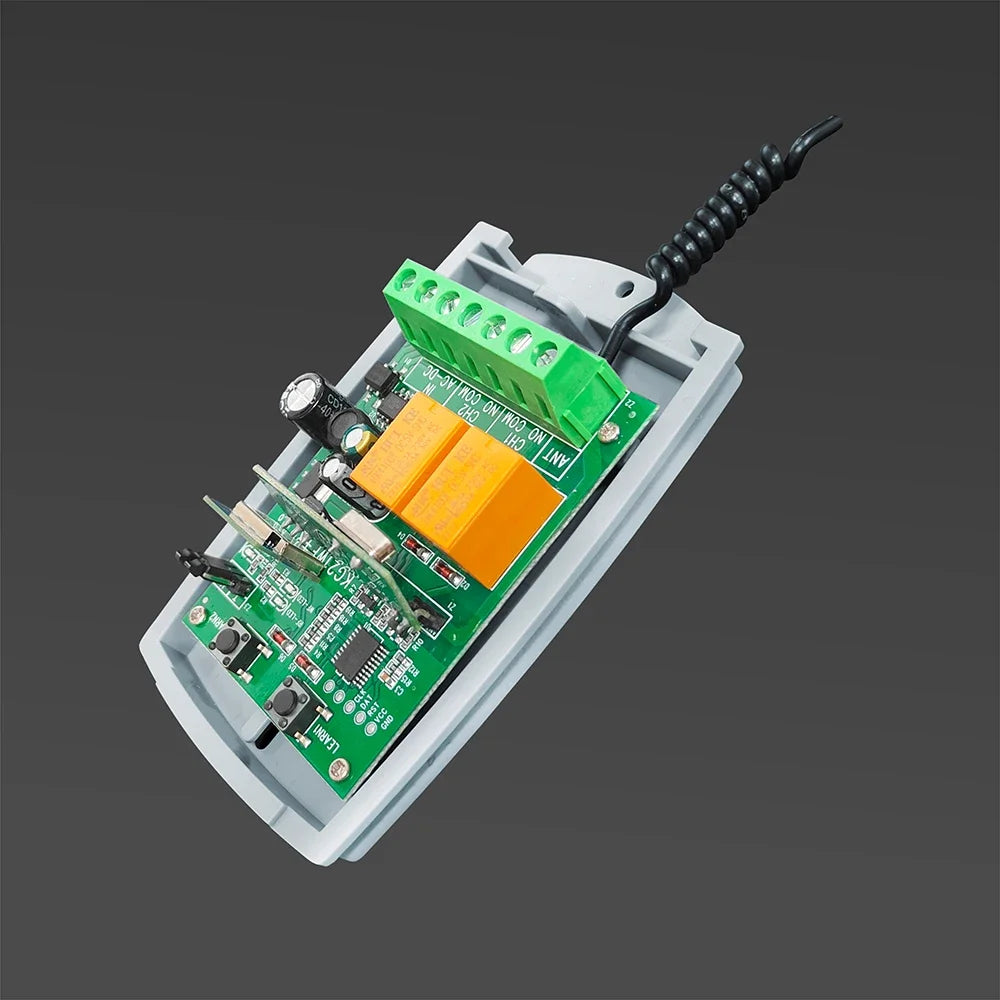

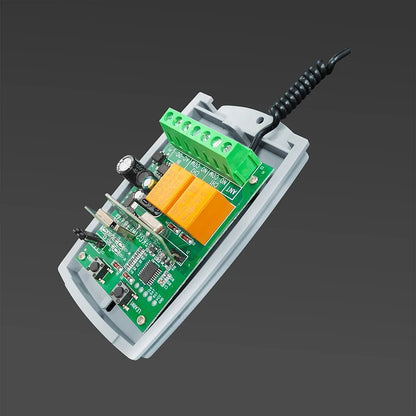

3. Working mode: momentary mode/switching mode (manually insert the jumper cap on the control board into T for switching mode, and insert M for momentary mode)
4. Static current: 150mA
5. Coding: rolling code/learning code/fixed code
6. Size: 94*60*28MM
7. Rated current: 3A
8. Control mode: WIFI(APP/Voice)+RF
9. Compatible with FAAC BFT DITEC NICE DOORHAN.....(As long as your garage door has mechanical button to control it, you can use our device)





√ Clearing and matching of RF data

Adjustment mode
Manually insert the jumper cap on the control board to T for Toggle mode, and insert it to M for Momentary mode .

How to Clear data
Press the learning button 8 times (learning button 1 or learning button 2 is acceptable), the LED flashes, and the remote control is successfully deleted (all previous remote controls that can control the device are invalid, including mobile phones)

How to match RF signal (remote control)
1. Press the learning button "1" once, the LED lights up, press the first button on the remote control, the LED flashes, and the learning relay 1 is successful.
2. Press the learning button "2" once, the LED lights up, press the second button on the remote control, the LED flashes, and the learning relay 2 is successful.


√ How to connect to wifi (tuya or smart life)
① Turn on Bluetooth, open the APP, and click Add Device
② Select the device automatically searched by Bluetooth
③ Mobile phone connects to 2.4GWIFI and enters the WIFI password
④ Click Next and wait for the device to connect successfully
⑤ Device added successfully

NOTE: Only when the wifi indicator (blue light) is flashing, can the device be connected to the app. Generally, within two minutes after power-on, the blue light will automatically enter the flashing state. If not, you can press and hold the learning button about 10 seconds, and the blue light will flashing.

√  How to get the Alexa signal
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
